Product Description

• Home Energy Storage Wholesale Price 10kw Solar System With 100ah 200ah Oem Cabinet Type Lifepo4 Battery Pack

• Model	AIR 5220-S1	AIR 5220-S2	AIR 5220-S3	AIR 5220-S4	AIR 5220-S5
  Performance
  Nominal Voltage	51.2 Vdc
  Nominal Capacity	102 Ah	204 Ah	306 Ah	408 Ah	510 Ah
  Battery Energy	5.22kWh	10.44kWh	15.66kWh	20.88kWh	26.1 kWh
  CUS	4.7kWh	9.4kWh	14.1 kWh	18.8kWh	23.5kWh
  Charge Current	50 A	100A	150A	200A	200A
  Charge Power	2500W	5000W	7500W	10000W	10000W
  Discharge Current	50 A	100A	150A	200A	200A
  Discharge Power	2500W	5000W	7500W	10000W	10000W
  Short circuit current	350 A
  Communication
  Display	SOC status indicator, LED indicator
  Communication	RS232,RS485,CAN
  General Specification
  Dimension (WxDxH mm)	650x135x416	650x135x777	650x135x1138	650x135x1499	650x135x1860
  Weight (kg)	47 kg	91.3 kg	135.6 kg	180kg	224.2 kg
  Installation	Floor Stand or Wall Mount
  Working Temperature	-20°C-60°C
  Operating / Storage humidity	<95% RH
  Max Operating Altitude	M2000m
  IP Rating	IP66
  Cell Technology	LiFePO4,Lithium Iron Phosphate
  Cycle life	6000 Cycles @ 80% DOD / 25C / 0.5C, 60% EOL

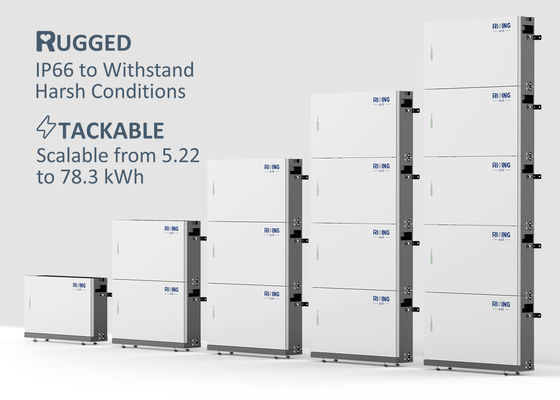

  Scalability	Max 15 batteries in parallel
  Standard Compliance(more available upon request)
  Certificates	CE, IEC61000, IEC62619, IEC62040, UN38.3, ROHS
  Ordering and Deliverable Part
  Product ordering part	AIR 5220-S Battery + Parallel Cable AIR 5220-S Base + Power Cable

• Company and factory

•






  ※ Shenzhen Rising Co., Ltd is a new energy storage company headquartered in Shenzhen, China with

  a cooperation factory located in Dongguan, China. We specialize in the research and development, and

  sales of energy storage batteries and energy storage inverters. Our products are designed to provide

  reliable and efficient energy storage solutions for residential and commercial customers.





  Exhibition



  ※EES Europe2023

  Application scenarios









  Compatible inverters





  certificate
