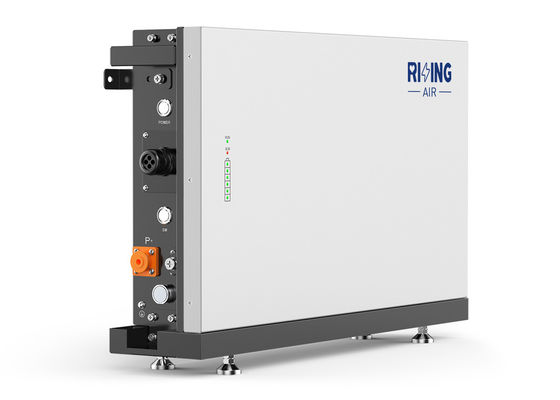

7.5kwh 10kwh Solar Battery Home Backup 48V 51.2V 100Ah 150Ah 200Ah
Product Details:
| Place of Origin: | China |
| Brand Name: | Rising |
| Certification: | IEC61000,IEC62040,IEC62619,ROHS |
| Model Number: | AIR 5220-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$+1097-1149+piece |
| Packaging Details: | Each product is packaged in a separate carton |
| Delivery Time: | 7-10 workday |
| Payment Terms: | T/T |
| Supply Ability: | 10000+piece+month |
|
Detail Information |
|||
| Application: | Home Solar Energy Storage System | Product Name: | Lithium Iron Phosphate Lifepo4 Battery |
|---|---|---|---|
| Capacity: | 100Ah 200Ah | Cycle Life: | 6000 Cycles |
| Warranty: | 10YEARS | Voltage: | 51.2 V |
| OEM/ODM: | Accepatable | Type: | Lithium Battery |
| Size: | 650*135*416 Mm | Weight: | 47 Kg |
| Colors: | White | ||
| High Light: | 10kwh Solar Battery Home Backup,7.5kwh Solar Battery Home Backup,Solar Battery Home Backup 48V |
||
Product Description
- Solar energy storage system 5kwh 7.5kwh 10kwh 48V 51.2V 100Ah 150Ah 200Ah Solar lithium Battery
-

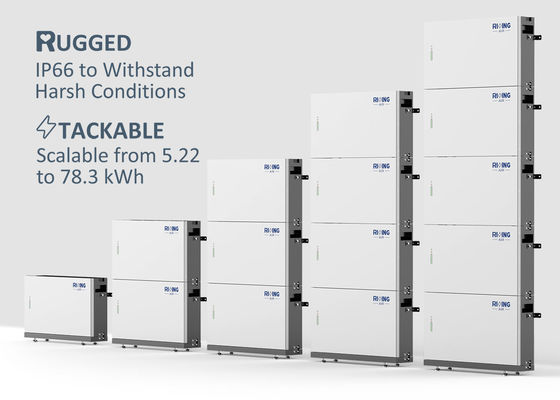

Model AIR 5220-S1 AIR 5220-S2 AIR 5220-S3 AIR 5220-S4 AIR 5220-S5 Performance Nominal Voltage 51.2 Vdc Nominal Capacity 102 Ah 204 Ah 306 Ah 408 Ah 510 Ah Battery Energy 5.22kWh 10.44kWh 15.66kWh 20.88kWh 26.1 kWh CUS 4.7kWh 9.4kWh 14.1 kWh 18.8kWh 23.5kWh Charge Current 50 A 100A 150A 200A 200A Charge Power 2500W 5000W 7500W 10000W 10000W Discharge Current 50 A 100A 150A 200A 200A Discharge Power 2500W 5000W 7500W 10000W 10000W Short circuit current 350 A Communication Display SOC status indicator, LED indicator Communication RS232,RS485,CAN General Specification Dimension (WxDxH mm) 650x135x416 650x135x777 650x135x1138 650x135x1499 650x135x1860 Weight (kg) 47 kg 91.3 kg 135.6 kg 180kg 224.2 kg Installation Floor Stand or Wall Mount Working Temperature -20°C-60°C Operating / Storage humidity <95% RH Max Operating Altitude M2000m IP Rating IP66 Cell Technology LiFePO4,Lithium Iron Phosphate Cycle life 6000 Cycles @ 80% DOD / 25C / 0.5C, 60% EOL Scalability Max 15 batteries in parallel Standard Compliance(more available upon request) Certificates CE, IEC61000, IEC62619, IEC62040, UN38.3, ROHS Ordering and Deliverable Part Product ordering part AIR 5220-S Battery + Parallel Cable AIR 5220-S Base + Power Cable -
Company and factory
-
※ Shenzhen Rising Co., Ltd is a new energy storage company headquartered in Shenzhen, China with
a cooperation factory located in Dongguan, China. We specialize in the research and development, and
sales of energy storage batteries and energy storage inverters. Our products are designed to provide
reliable and efficient energy storage solutions for residential and commercial customers.
Exhibition
※EES Europe2023
Application scenarios
Compatible inverters
certificate
Want to Know more details about this product
