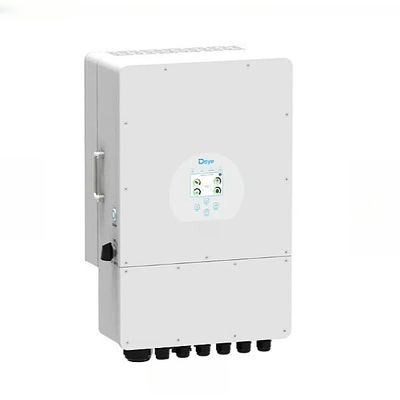

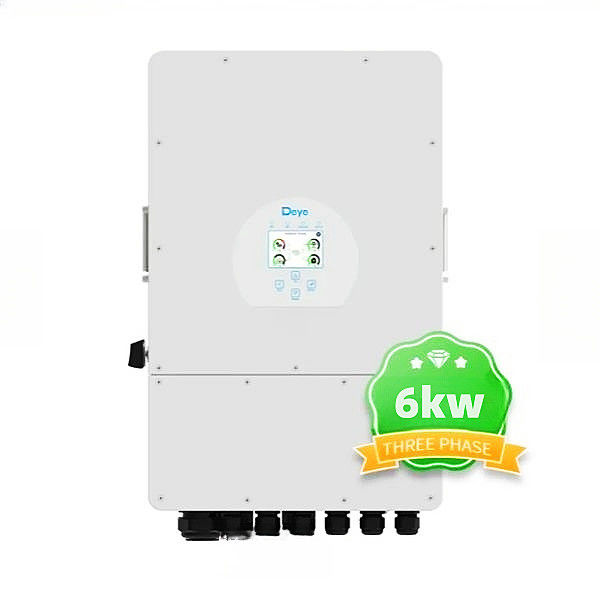

Deye Sun 6K Low Voltage Hybrid Inverter Wall Mounted IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | Deye |
| Certification: | CE ISO TUV |
| Model Number: | SUN-6K-SG04LP3-EU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$+1828-2028+piece |
| Packaging Details: | Each product is individually packaged in a carton or packaged according to your requirements. |
| Delivery Time: | 10-15workday |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces month |
|
Detail Information |
|||
| Brand Name: | Deye | Model Number: | SUN-6K-SG04LP3-EU |
|---|---|---|---|
| Input Voltage: | 550V(160V~800V) | Output Voltage: | 220/380Vac,230/400Vac |
| Output Current: | 7.6-18.2A | Output Frequency: | 50/60Hz |
| Output Type: | Single | Size: | 422*279*699.3 Mm |
| Inverter Efficiency: | 99% | Warranty: | 5 Years |
| Weight: | 33.6KG | Application: | Solar Power System Home |
| Rated Power: | 6kW | Type: | DC/AC Inverters |
| Certificate: | CE ISO TUV | ||
| High Light: | 6K Low Voltage Hybrid Inverter,Deye Sun 6K Low Voltage,Wall Mounted Low Voltage Hybrid Inverter |
||
Product Description
Factory Direct Supply SUN-6K-SG04LP3-EU Deye Hybrid Inverter Solar Hybrid Inverter
| Model | SUN-5K- SG04LP3-EU |
SUN-6K- SG04LP3-EU |
SUN-8K- SG04LP3-EU |
SUN-10K- SG04LP3-EU |
SUN-12K- SG04LP3-EU |
| Bamery Input Data | |||||
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) |
40~60V | ||||
| Max. Charging Current (A) |
120A | 150A | 190A | 210A | 240A |
| Max. Discharging Current (A) |
120A | 150A | 190A | 210A | 240A |
| Charging Curve | 3 Stages /Equalization | ||||
| Extemal Temperature Sensor |
Yes | ||||
| Charging Strategy for Li-lon Battery |
Seli-adaption to BMS | ||||
| PVStringInput Data | |||||
| Max. DC Input Power (W) |
6500W | 7800W | 10400W | 13000W | 15600W |
| Rated PV Input Voltage (V) |
550V(160V～800V) | ||||
| Start-up Voltage (V) |
160V | ||||
| MPPT Range (V) | 200V-650V | ||||
| Full Load DC Voltage Range (V) |
350V-650V | ||||
| PV Input Current (A) |
13A+13A | 26A+13A | |||
| Max. PV ISC (A) | 17A+17A | 34A+17A | |||
| Number of MPPT/ Strings per MPPT |
2/1 | 2/2+1 | |||
| AC Output Data | |||||
| Rated AC Output and UPS Power (W) |
5000W | 6000W | 8000W | 10000W | 12000W |
| Max.AC Output Power (W) |
5500W | 6600W | 8800W | 11000W | 13200W |
| Peak Power (off grid) |
2 times of rated power, 10 S | ||||
| AC Output Rated Current (A) |
7.6/7.2 | 9.1/8.7 | 12.1/11.6 | 15.2/14.5 | 18.2/17.4 |
| Max. AC Current (A) |
11.4/10.9 | 13.6/13 | 18.2/17.4 | 22.7/21.7 | 27.3/26.1 |
| Max. Continuous AC Passthrough (A) |
45A | ||||
| Output Frequency and Voltage |
50/60Hz;3L/N/PE 220/380Vac,230/400Vac | ||||
| Grid Type | Three Phase | ||||
| Current Harmonic Distortion |
THD<3%(Linear load<1.5%) | ||||
| Efficiency | |||||
| Max. Efficiency | 97.60% | ||||
| Euro Efficiency | 97.00% | ||||
| MPPT Efficiency | 99.90% | ||||
| Protection | |||||
| PV Input Lightning Protection |
Integrated | ||||
| Anti-islanding Protection |
Integrated | ||||
| py string Input Reverse Polarity Protection |
Integrated | ||||
| Insulation Resistor Detection |
Integrated | ||||
| Residual Current Monitoring Unit |
Integrated | ||||
| Output Over Current Protection |
Integrated | ||||
| Output Shorted Protection |
Integrated | ||||
| Output Over Voltage Protection |
Integrated | ||||
| Surge protection | DC TypeⅡI/AC Type Ⅲ | ||||
| Certifications and Standards | |||||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105 , NRS 097 ,IEC 621 16, IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 |
||||
| Safety EMC/ Standard |
IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | ||||
| General Data | |||||
| Operating Temperature Range (°C |
-45~60°C,>45°℃ Derating | ||||
| Cooling | Smart cooling | ||||
| Noise (dB) | <45 dB | ||||
| Communication with BMS |
RS485; CAN | ||||
| Weight (kg) | 33.6 | ||||
| Size (mm) | 422W×699.3H×279D | ||||
| Protection Degree | IP65 | ||||
| Installation Style | Wall-mounted | ||||
| Warranty | 5 years | ||||
