5KW 6KW Low Voltage Hybrid Inverter IP65 2 MPPT Hybrid PV Inverter
Product Details:
| Place of Origin: | China |
| Brand Name: | Deye |
| Certification: | CE;IEC;EMC;SAA;VDE 4105 |
| Model Number: | SUN-3.6K-SG03LP1-EU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | US$+857-1057+piece |
| Packaging Details: | Each product is individually packaged in a carton or packaged according to your requirements. |
| Delivery Time: | 10-15workday |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pieces month |
|
Detail Information |
|||
| Brand Name: | Deye | Model Number: | SUN-3.6K-SG03LP1-EU |
|---|---|---|---|
| Input Voltage: | 125~500V | Output Voltage: | 220/230/240Vac |
| Output Current: | 27.3A | Output Frequency: | 50/60Hz |
| Output Type: | Single | Size: | 330W*232D*580H Mm |
| Inverter Efficiency: | 97.60% | Warranty: | 5 Years |
| Weight: | 20.5kg | Application: | Solar Power System Home |
| Rated Power: | 3-6kw | Type: | DC/AC Inverters |
| High Light: | 6KW Low Voltage Hybrid Inverter,IP65 2 MPPT Hybrid PV Inverter,5KW Low Voltage Hybrid Inverter |
||
Product Description

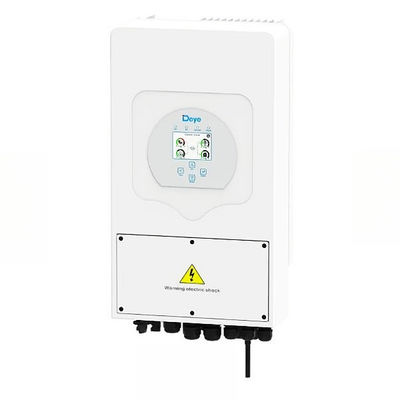

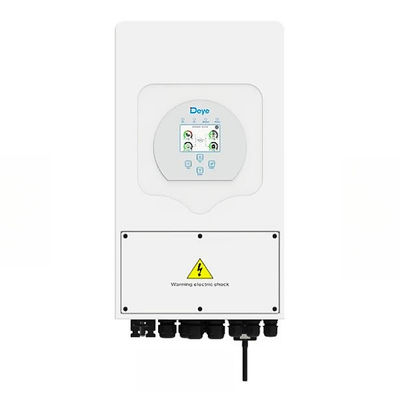

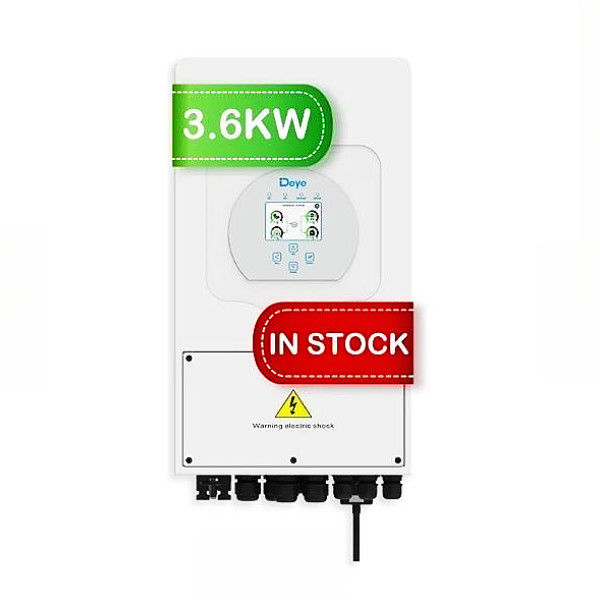

Deye inverters 3.6kw 5kw 6kw IP65 2 MPPT PV system solar hybrid inverter SUN-3.6K-SG03LP1-EU
| Model | SUN-3.6K-SGO3LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SGO3LP1-EU |
| Battery Input Data | |||
| Battery Type | ead-acid or Li-lon | ||
| Battery Voltage Range (V) |
|||
| Max. Charging Current (A) |
90 | 120 | 135 |
| Max. Discharging Current (A) |
90 | 120 | 135 |
External Temperature Sensor |
Yes |
||
| Charging Curve | 3 Stages / Equalization | ||
| Charging Strategy for Li-lon Battery |
Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) |
4680 | 6500 | 7800 |
| Rated PV Input Voltage (V) |
370(125~500) | ||
| Start-up Voltage (V) | 125 | ||
| MPPT Voltage Range (V) |
150-425 | ||
| Full Load DC Voltage Range (V) |
300-425 | ||
| PV Input Current (A) |
13+13 |
||
| Max. PV ISC (A) | 17+17 | ||
| Number of MPPT/ Strings per MPPT |
2/1+1 | ||
| AC Output Data | |||
| Rated AC Output and UPS Power (W) |
3600 | 5000 | 6000 |
| Max. AC Output Power (W) |
3690 | 5500 | 6600 |
| AC Output Rated Current (A) |
16.4 |
22.7 |
27.3 |
| Max. AC Current (A) |
18 |
25 |
30 |
| Max. Continuous AC Passthrough (A) |
35 |
40 |
|
| Peak Power (offff grid) |
2 time of rated power, 10 S | ||
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Output Frequency and Voltage |
50/60Hz; L/N/PE 220/230Vac (single phase) | ||
| Grid Type | Single Phase | ||
| DC injection current (mA) |
THD<3%(Linear load<1.5%) | ||
| Effiffifficiency | |||
| Max, Effiffifficiency | 97.6% | ||
| Euro Effiffifficiency | 97% | ||
| MPPT Effiffifficiency | 99.9% | ||
| Protection | |||
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, nsulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection |
||
| Certififications and Standards | |||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98 VDE 0126-1-1,RD 1699,C10-11 |
||
| Safety EMC/ Standard |
EC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2 | ||
| General Data | |||
| Operating Temperature Range (℃) |
45~60°℃,>45C derating | ||
| Cooling | Natural cooling | ||
| Noise (dB) | <30 dB | ||
| Communication with BMS |
RS485; CAN |
||
| Weight (kg) | 20.5 | ||
| Size (mm) | 330W x580H x232D | ||
| Protection Degree | P65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
